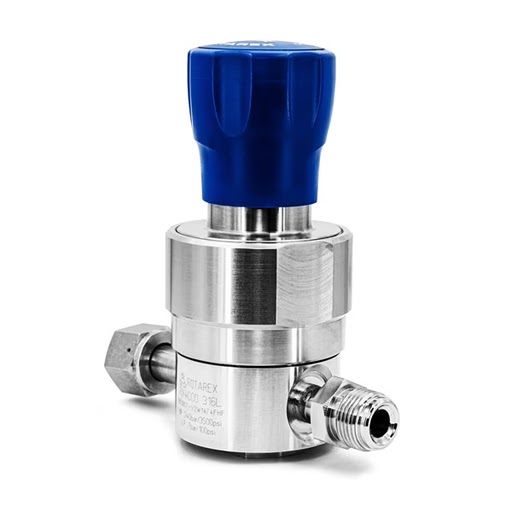

4200 UHP Regulator
Model RX4200 · Ultra High Purity Gas Regulators
Single stage tied-diaphragm Cv 0.15 to 1.1. Inlet 21/117/207/240 bar.
Maximum Inlet Pressure21 / 117 / 207 / 240 bar, rating depends on Cv and outlet version
Setting Range2 / 4 / 7 / 10 bar versions
In/Out Connections1/4 or 1/2 in VCR male or female, 2, 3 or 4 port bodies
Key features
- Tied diaphragm across Cv 0.15 to 1.1
- Outlet versions 2 to 10 bar
- 316L VAR double melt body option
- Seat options include Vespel and PVDF
- SEMI F19 UHP electropolished finish options
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The tied diaphragm, springless regulator of the higher flow RX platform, spanning Cv 0.15 to 1.1 with outlet pressures of 2, 4, 7 and 10 bar and inlet ratings up to 240 bar depending on configuration. The body is AISI 316L with a 316L VAR double melt option to SEMI F20, the seat is PCTFE with Vespel, PVDF and PTFE alternatives, and electropolished finishes to SEMI F19 UHP grade are available. Cleanroom assembly and a serial number on every unit apply here as across the whole range.
Specification
| Maximum Inlet Pressure | 21 / 117 / 207 / 240 bar, rating depends on Cv and outlet version |
|---|---|
| Setting Range | 2 / 4 / 7 / 10 bar versions |
| In/Out Connections | 1/4 or 1/2 in VCR male or female, 2, 3 or 4 port bodies |
| Stages | single stage |
| Temperature | -20 to +65 C |
| Cv | 0.15 / 0.25 / 0.5 / 0.9 / 1.1 |
| Body Material | AISI 316L stainless steel (316L VAR double melt to SEMI F20 optional) |
| Technology | tied diaphragm, springless |
| Seat Material | PCTFE (Vespel, PVDF or PTFE optional) |
Gases
Hydrogen
