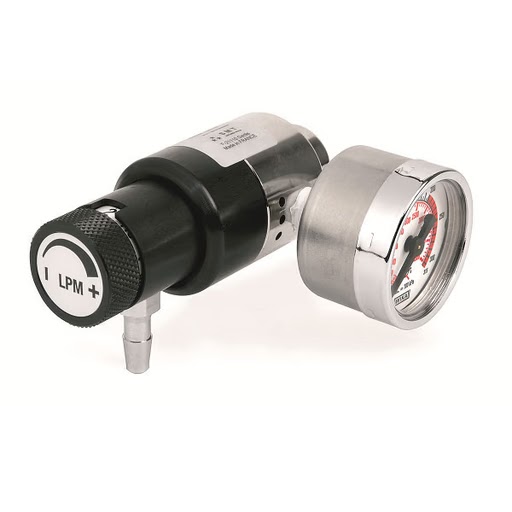

S Series 75 Constant Flow Regulator
Rotarex piston constant flow regulator for calibration gas cylinders: outlet preset at 3.5 bar, ten position flow selector to 3 or 5 l/min, 200 bar inlet, 0.7 kg.
Key features
- Piston control holds the flow steady as the cylinder empties
- Ten position flow selector, 0.3 to 3 or 0.5 to 5 l/min by version
- Outlet preset at 3.5 bar, integrated safety valve, high pressure gauge
- 0.7 kg, sized to travel with a portable calibration cylinder
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteDownload data sheetThe Rotarex S Series 75 is a piston type constant flow regulator for calibration gas, made for calibration work from a portable cylinder. The outlet pressure is preset at 3.5 bar as standard and the flow is set on a ten position selector, 0.3 to 3 l/min on the B03 version or 0.5 to 5 l/min on the B05, and the piston holds that flow steady as the cylinder empties from a 200 bar fill. At 0.7 kg it is built to travel with the cylinder. The inlet is C10 or 1/4 in NPT, the outlet a hose barb, DR 6 or 1/4 in tube fitting, with a high pressure gauge on a 1/8 in NPT port and an integrated safety valve. The body is nickel plated brass with a Hastelloy piston, PCTFE seat gasket and FPM O-ring, oxygen use is on the brass body only, and the helium leak rate is 1 x 10-4 mbar l/s.
Specification
| Maximum Inlet Pressure | 200 bar |
|---|---|
| Setting Range | 3.5 bar preset outlet, standard |
| In/Out Connections | Inlet C10 or 1/4 in NPT female; outlet hose barb, DR 6 or 1/4 in tube fitting |
| Gas Compatibility | Oxygen use on the brass body version |
| Temperature | -20 to +60 C |
| Weight | 0.7 kg |
| Gauge | high pressure, 1/8 in NPT |
| Body Material | nickel plated brass |
| Seat Material | PCTFE (seat gasket) |
| Inner Parts | Hastelloy piston, FPM O-ring |
| Flow Rate | 0.3 to 3 l/min (B03) or 0.5 to 5 l/min (B05), 10 position selector |
| Technology | piston regulator, 1 inlet and 1 outlet, integrated safety valve |
