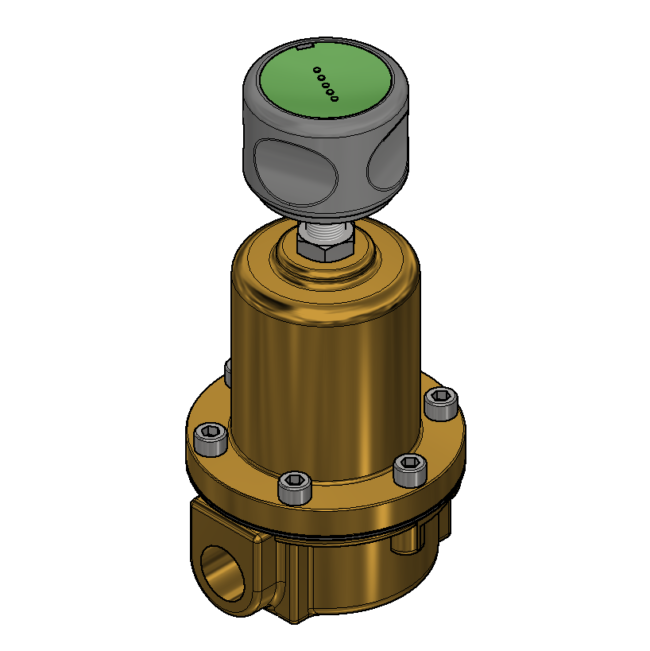

Series PHF BS2 BP12 High Flow
Model PHF BS2 BP12 · Back Pressure Pipeline Regulator
Back Pressure Pipeline regulator offering balanced-valve stability and high flow performance.
Maximum Inlet Pressure60 bar
Setting Range0 to 3 / 0 to 8 / 0 to 15 / 0 to 30 / 0 to 50 bar
In/Out Connections1/4 and 1/2 in (G-F / NPT-F)
Key features
- Holds upstream pressure, protecting equipment behind it
- Five ranges between 0 and 50 bar
- Brass body, 1/4 and 1/2 inch connections
- Rated for gases and liquids
- PED 2014/68/EU certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A back pressure regulator, which works the opposite way round to a reducing valve: it holds the pressure upstream of itself, opening to relieve flow downstream once the line reaches the set point. That protects pumps, membranes and instruments behind it from overpressure. Brass construction in 1/4 and 1/2 inch sizes, five ranges from 0 to 50 bar, rated for gases and liquids.
Conformity
PED 2014/68/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0 to 3 / 0 to 8 / 0 to 15 / 0 to 30 / 0 to 50 bar |
| In/Out Connections | 1/4 and 1/2 in (G-F / NPT-F) |
| Temperature | -20 to +80 C |
| Weight | 2.8 kg |
| Inner Parts | brass |
| Body Material | brass |
Gases
Hydrogen
