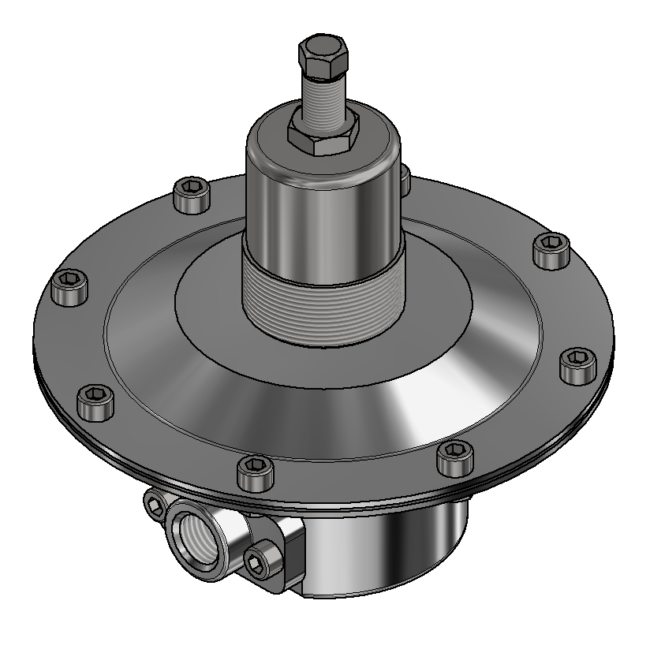

Series PHF CS3 BP12 High Flow
Model PHF CS3 BP12 · Back Pressure Pipeline Regulator
Millibar back pressure regulator in 316L stainless for gas lines, holding upstream pressure at settings of 0 to 100 or 0 to 1000 mbar.
Maximum Inlet Pressure7 bar
Setting Range0 to 100 mbar / 0 to 1000 mbar
In/Out Connections1/4 and 1/2 in (G-F / NPT-F)
Key features
- Millibar back pressure control, 0 to 100 and 0 to 1000 mbar
- Protects delicate low pressure equipment upstream
- AISI 316L throughout at 1.6 kg
- 1/4 and 1/2 inch connections
- ATEX and PED certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
A millibar range back pressure regulator, holding an upstream line at settings as low as 0 to 100 mbar, which is the unit for protecting delicate equipment on very low pressure systems: analysers, glassware and membrane processes. AISI 316L throughout, 1/4 and 1/2 inch connections, 1.6 kg, with ATEX certification alongside PED.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 7 bar |
|---|---|
| Setting Range | 0 to 100 mbar / 0 to 1000 mbar |
| In/Out Connections | 1/4 and 1/2 in (G-F / NPT-F) |
| Temperature | -25 to +130 C |
| Weight | 1.6 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 1.5 m3/h |
Applications
Pressure ControlProcess ControlAnalytical InstrumentationGas Delivery Systems
Gases
