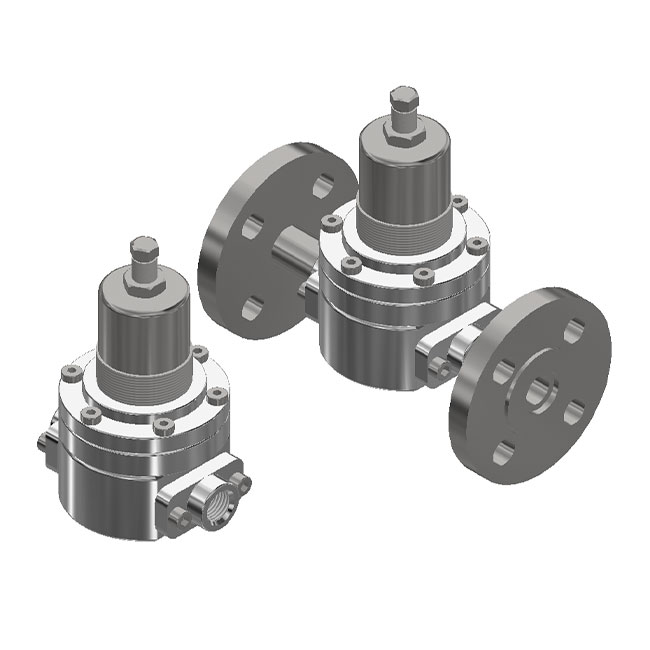

Series PHF CS2 BP12 High Flow
Model PHF CS2 BP12 · Back Pressure Pipeline Regulator
Back Pressure Pipeline regulator offering high flow performance and protection of upstream devices.
Maximum Inlet Pressure60 bar
Setting Range0.3 to 3 / 0.8 to 8 / 1.5 to 15 / 3 to 30 / 5 to 50 bar
In/Out Connections1/4, 3/8 and 1/2 in (G-F / NPT-F); flanged available
Key features
- Upstream pressure protection for pumps and process kit
- Full stainless construction for corrosive lines
- Five ranges spanning 0.3 to 50 bar
- Service to +200 C with FPM seals
- ATEX and PED certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The stainless steel back pressure regulator in 1/4 to 1/2 inch sizes, holding the upstream line at its set point and relieving forward once it is reached, which protects pumps and process equipment behind it. AISI 316L throughout for corrosive duty, five setting ranges spanning 0.3 to 50 bar, temperatures to +200 C with FPM seals, and ATEX certification alongside PED.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0.3 to 3 / 0.8 to 8 / 1.5 to 15 / 3 to 30 / 5 to 50 bar |
| In/Out Connections | 1/4, 3/8 and 1/2 in (G-F / NPT-F); flanged available |
| Temperature | -25 to +200 C (FPM seals) / -40 to +175 C (EPDM) |
| Weight | 3.2 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
Gases
Hydrogen
