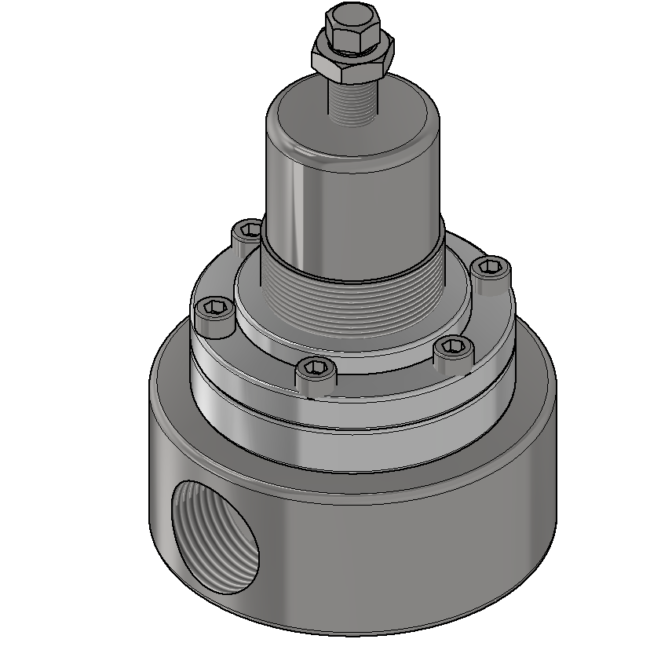

Series PHF CS2 BP10 High Flow
Model PHF CS2 BP10 · Back Pressure Pipeline Regulator
Back Pressure Pipeline regulator offering high flow performance and protection of upstream devices.
Maximum Inlet Pressure60 bar
Setting Range0 to 1.5 / 3 / 8 / 15 / 30 / 50 bar
In/Out Connections3/4 and 1 in (G-F / NPT-F); flanged available
Key features
- 3/4 and 1 inch sizes, Kv 8.5 m3/h
- Holds upstream pressure to a set point
- AISI 316L throughout, service to +200 C
- Oxygen-degreased version available
- ATEX and PED certified
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteUK stock and next-day dispatch on held lines
Technical selection support before you order
The larger line size stainless back pressure regulator, in 3/4 and 1 inch sizes with an 8.5 m3/h flow capacity, holding upstream pressure at the set point and relieving forward beyond it. Set ranges reach from 1.5 up to 50 bar full scale, in AISI 316L throughout, with temperatures to +200 C on FPM seals. A degreased version is available for oxygen service, ATEX certified alongside PED.
Conformity
PED 2014/68/EU; ATEX 2014/34/EU
Specification
| Maximum Inlet Pressure | 60 bar |
|---|---|
| Setting Range | 0 to 1.5 / 3 / 8 / 15 / 30 / 50 bar |
| In/Out Connections | 3/4 and 1 in (G-F / NPT-F); flanged available |
| Temperature | -25 to +200 C (FPM seals) / -40 to +175 C (EPDM) |
| Weight | 4 kg |
| Inner Parts | AISI 316L stainless steel |
| Body Material | AISI 316L stainless steel |
| Kv (EN 60534) | 8.5 m3/h |
Gases
Hydrogen
