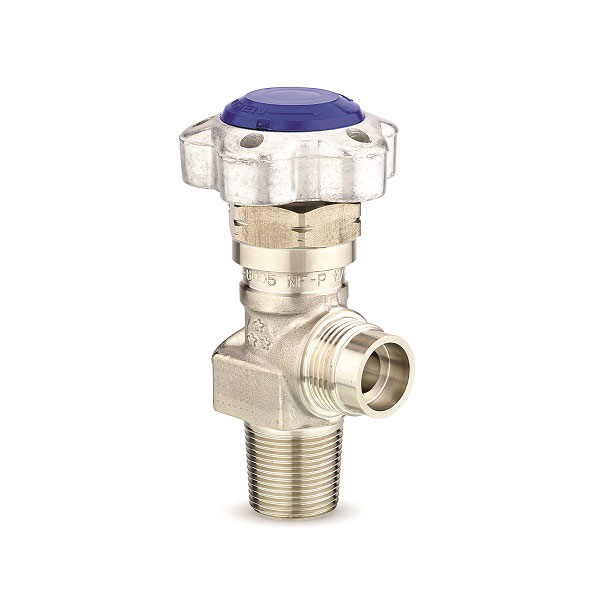

D100 High Purity Cylinder Valve
Cylinder Valve with Packed Needle Stem Design for High Purity Gas Applications
Key features
- Packed needle stem, gas kept from the mechanism
- 3.3 mm orifice, 200 bar, Cv 0.3
- All internal parts replaceable
- Adjustable gland packing
- Low internal volume for purging
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteA packed type cylinder valve for high purity corrosive gases, rated 200 bar with a 3.3 mm orifice and Cv 0.3, where the gas never reaches the operating mechanism, so the valve is free from seizure with corrosive gases. The spindle is mechanically linked to the handwheel for positive operation at low closing torque, all internal parts are replaceable, and the gland packing is adjustable, so a leak past the spindle is corrected by retightening the gland nut. A low internal volume suits hygroscopic, corrosive and high purity gases where inert purging is needed before opening. Bodies in AISI 303 or 316L stainless steel, brass CW617N or ASB, marked to TPED.
Specification
| Orifice | 3.3 mm |
|---|---|
| Maximum Inlet Pressure | 200 bar |
| In/Out Connections | to national or international standards and customer specification |
| Cv | 0.3 |
| Temperature | -20 to +65 C |
| Body Material | AISI 303 or AISI 316L stainless steel, brass CW617N or ASB |
| Technology | packed type cylinder valve, needle stem |
