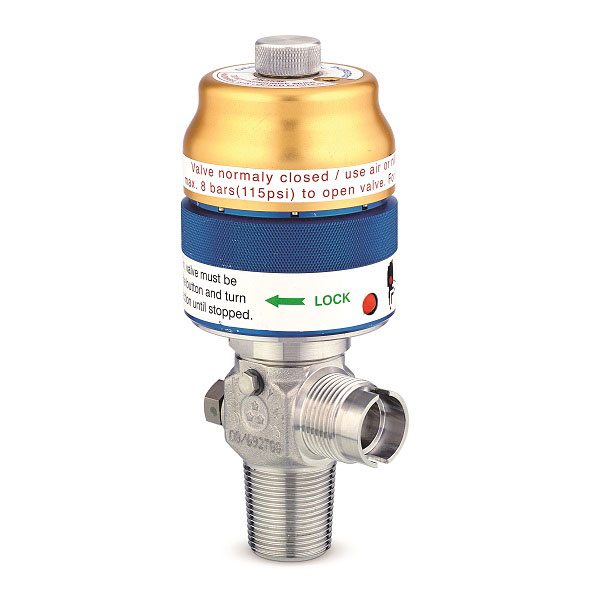

D354 Oleo-Pneumatic Soft seat 4mm orifice valve
D354 valve with oleo-pneumatic actuator is designed for keeping the highest level of gas purity. No particle are generated thanks to its tight diaphragm technology. Commonly used for ultra-high-purity, corrosive, reactive and toxic gases, its oleo-pneumatic actuator increase the seat closure force.
Key features
- Oleo pneumatic actuator
- 4 mm orifice, 200 bar, Cv 0.35
- Tied diaphragm, soft seat
- 316L body, Hastelloy option
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteAn oleo pneumatic 4 mm tied diaphragm cylinder valve for ultra high purity gas, rated 200 bar with Cv 0.35 and operated by an oleo pneumatic actuator. Soft seat with a metal back up for low permeation, minimal gas wetted volume, no particle generating threads in the gas path and mechanically linked spindles for positive operation. Body in AISI 316L with Hastelloy 2.4602 as an option, threaded weep hole for leak testing, optional pressure relief device, marked to TPED with connection and seat material.
Specification
| Orifice | 4 mm |
|---|---|
| Maximum Inlet Pressure | 200 bar |
| In/Out Connections | to national or international standards and customer specification |
| Cv | 0.35 |
| Temperature | -40 to +65 C without pressure relief device |
| Body Material | AISI 316L stainless steel, Hastelloy 2.4602 option |
| Technology | oleo pneumatic tied diaphragm cylinder valve |
Gases
Downloads
No documents on file for this product yet.
