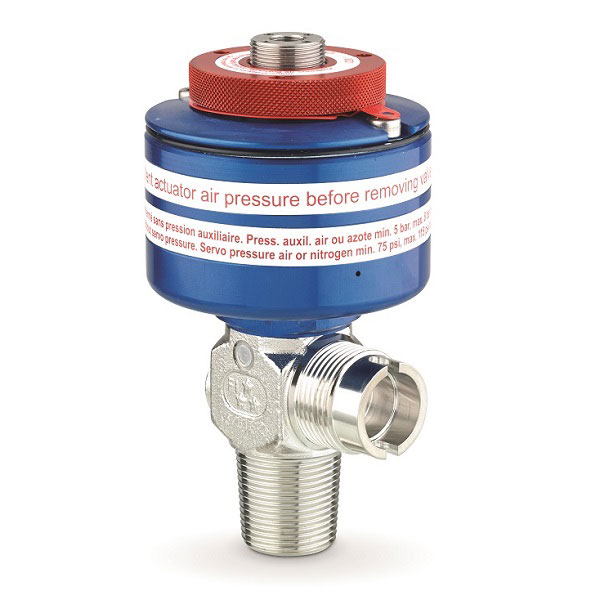

D387 Pneumatic actuator Low Pressure 8mm orifice valve
D387 low pressure pneumatic cylinder valve for UHP, corrosive, reactive and toxic gases is designed with the tied-diaphragm in order to keep the highest level of purity of the gas. Its 8mm orifice size allows a high CV value.
Key features
- Pneumatic actuator, low pressure service
- 8 mm orifice, 45 bar, Cv 0.7
- Backed up welded diaphragms
- Bodies in 316L, Hastelloy, Nickel or Monel 500 K
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe pneumatically actuated 8 mm low pressure cylinder valve, rated 45 bar with Cv 0.7, for ultra high purity, corrosive, reactive and toxic gases where remote operation is required. Backed up welded diaphragms provide the leak tightness, the gas does not reach the operating system, reduced dead space eases purging, and the wetted path has no particle generating threads. M4 tapped vent for a leak detector, optional pressure relief device. Body in AISI 316L, Hastelloy C22, Nickel 200 or Monel 500 K, marked to TPED.
Specification
| Orifice | 8 mm |
|---|---|
| Maximum Inlet Pressure | 45 bar |
| In/Out Connections | to national or international standards and customer specification |
| Cv | 0.7 |
| Temperature | -40 to +65 C without pressure relief device |
| Body Material | AISI 316L stainless steel, Hastelloy C22, Nickel 200 or Monel 500 K by version |
| Technology | pneumatically actuated tied diaphragm low pressure cylinder valve |
Gases
