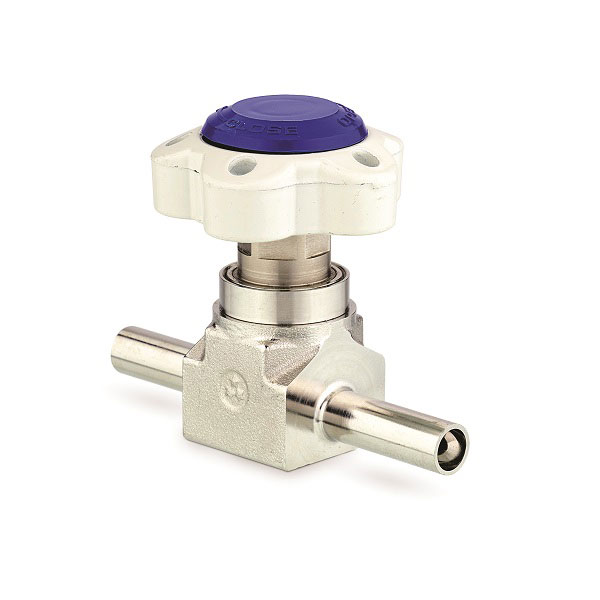

D639S Manual Line Valve
Soft seat 6mm orifice manual line valve.
Key features
- 6 mm manual line valve, Cv 0.5
- 200 bar working pressure
- Tied diaphragm, welded diaphragms
- Panel fixing front and back
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe 6 mm manual tied diaphragm line valve, rated 200 bar with Cv 0.5, for ultra high purity distribution lines that need more flow than the 4 mm D604 passes. Welded diaphragms for leak tightness, tied diaphragm for a small gas wetted volume and easy purging, no moving parts in the wetted area to generate particles, and a secondary seal that keeps gas away from the actuator if a diaphragm fails. Combined soft and metal seat with low permeation, M4 weep hole for a leak detector, panel fixing front and back, open and close indicator available. AISI 316L body as standard, marked with nominal pressure and flow direction.
Specification
| Orifice | 6 mm |
|---|---|
| Maximum Inlet Pressure | 200 bar |
| In/Out Connections | to national or international standards and customer specification |
| Cv | 0.5 |
| Temperature | -40 to +65 C |
| Body Material | AISI 316L stainless steel (1.4435) as standard |
| Technology | manual tied diaphragm line valve |
