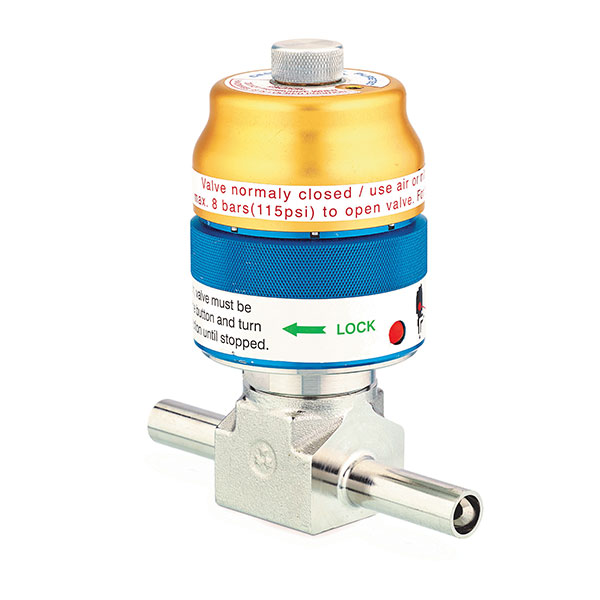

D654 Oleo-pneumatic Line Valve
Soft seat 4mm orifice oleo-pneumatic line valve.
Key features
- Oleo pneumatic line valve
- 4 mm orifice, 200 bar, 240 bar for filling
- Butt welded or nipple connections
- Secondary seal behind the diaphragm
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteAn oleo pneumatic tied diaphragm line valve for ultra high purity gas distribution, rated 200 bar working pressure and up to 240 bar for filling, with a 4 mm orifice and Cv 0.3. Connections are butt welded or welded with nipples to standard or customer definition. Welded diaphragms for leak tightness, tied diaphragm for a small wetted volume and easy purging, no moving parts in the wetted area, a secondary seal that keeps gas from the actuator on diaphragm failure, and a combined soft and metal seat. M4 weep hole for a leak detector, panel fixing front and back. AISI 316L body, marked to TPED with connection and seat material.
Specification
| Orifice | 4 mm |
|---|---|
| Maximum Inlet Pressure | 200 bar, up to 240 bar for filling |
| In/Out Connections | butt welded, or welded with nipples to standard or customer definition |
| Cv | 0.3 |
| Temperature | -40 to +65 C |
| Body Material | AISI 316L stainless steel (1.4435) |
| Technology | oleo pneumatic tied diaphragm line valve |
