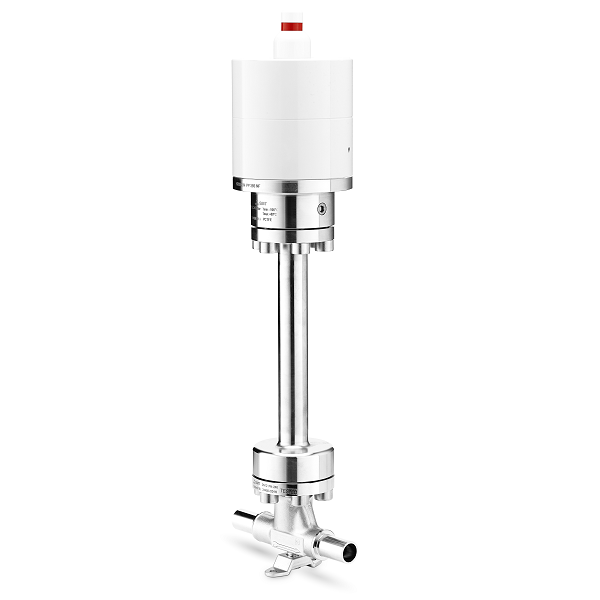

HP3000 Bellows Valve
High pressure bellows valve. Operating range -40°C to +120°C ambient.
Key features
- Bellows sealed stop valve, 300 bar
- 8 mm seat, Cv 1.2
- Helium leak tested, oxygen degreased
- 316L or Monel 400 body
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteThe highest rated of the ambient temperature bellows valves, a stop globe valve with bellows sealing for 300 bar service, for vacuum, pure and ultra pure gases and combustible, oxidising, toxic, corrosive, radioactive and noble gases. Offered with an 8 mm seat at Cv 1.2, helium leak tested on every valve, serial numbered, degreased for oxygen, electropolished finishes, visual open and close indicator, and manual handwheel or pneumatic actuation at 5 to 7 bar. Body in AISI 316L or Monel 400, seat PCTFE or Vespel, AISI 316L bellows with a Hastelloy option, nickel head gasket.
Specification
| Orifice | 8 mm seat |
|---|---|
| Maximum Inlet Pressure | 300 bar |
| Cv | 1.2 |
| Temperature | -40 to +120 C, seat dependent |
| Body Material | AISI 316L stainless steel or Monel 400 |
| Seat Material | PCTFE or Vespel |
| Technology | bellows sealed stop globe valve, manual or pneumatic |
