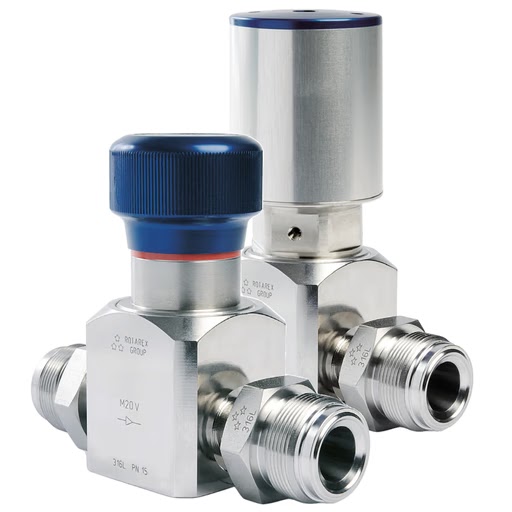

RX M20 HP & UHP Line Valve
Flow capacity 3.5 springless diaphragm.
Key features
- 20 mm seat, Cv 3.5, for 3/4 to 1 inch lines
- 15 bar, multiturn or pneumatic
- Optional purge ports, replaceable seat
- Electric limit switch option
Enquire about this product
Priced to your specification. Most enquiries are answered the same working day.
Request a quoteDownload data sheetThe largest of the UHP diaphragm line valves, a 20 mm seat valve for 3/4 to 1 inch distribution lines with Cv 3.5 and a 15 bar rating in multiturn and pneumatic versions. Optional purge ports give excellent purgeability, the seat is replaceable, and every valve is helium leak tested to 1 x 10-9 mbar.l/s or better, assembled in an ISO Class 4 cleanroom and serial numbered, with a burst pressure above 700 bar. AISI 316L body with SEMI F20 option, Phynox diaphragm, seat in PCTFE to 65 C or polyimide to 150 C from -20 C, electropolished to SEMI F19 UHP grade with finishes down to Ra 0.13 micron, and an electric limit switch option.
Specification
| Orifice | 20 mm seat |
|---|---|
| Maximum Inlet Pressure | 15 bar |
| In/Out Connections | 3/4 to 1 in, metal face seal female or male |
| Cv | 3.5 |
| Temperature | -20 to +65 C with PCTFE seat, -20 to +150 C with polyimide |
| Body Material | AISI 316L stainless steel, SEMI F20 option |
| Seat Material | PCTFE or polyimide, replaceable |
| Diaphragm | Phynox |
| Technology | diaphragm line valve, multiturn or pneumatic |
